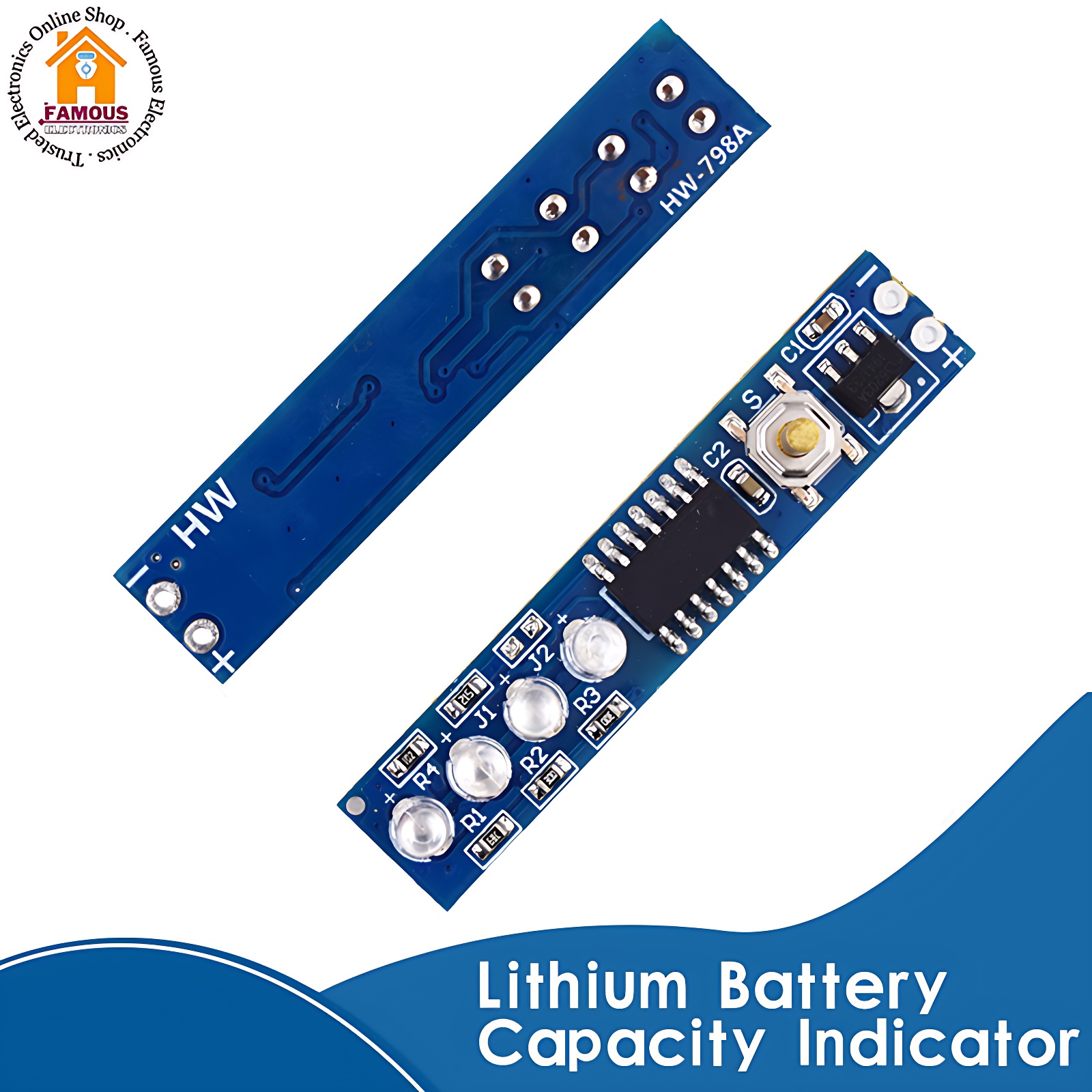

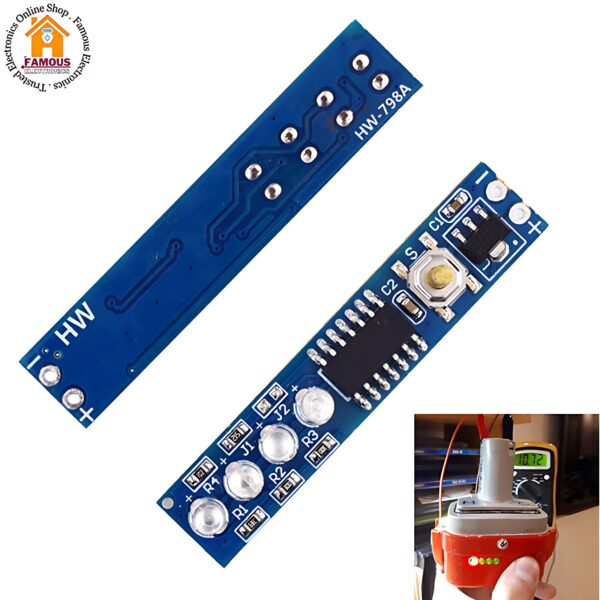

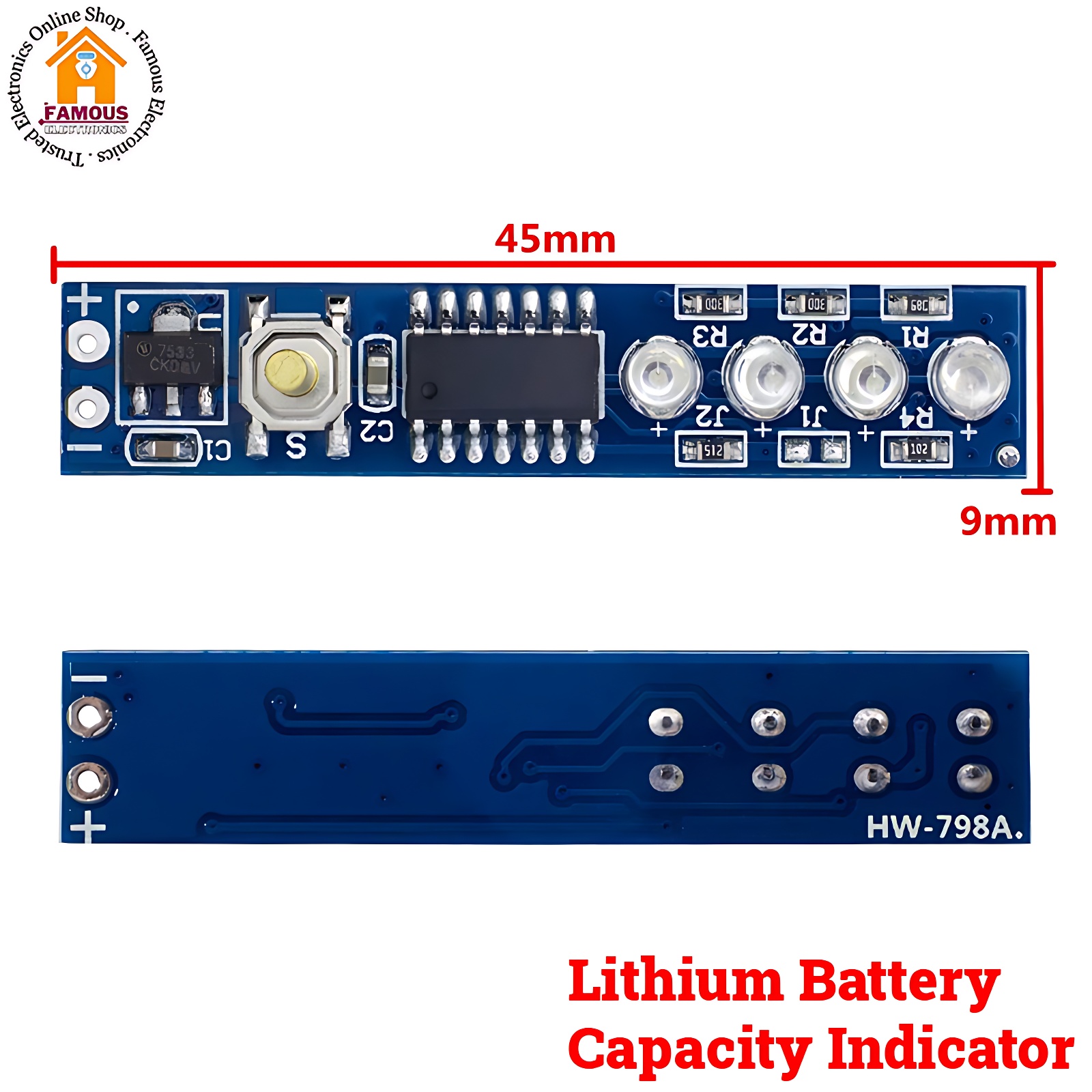

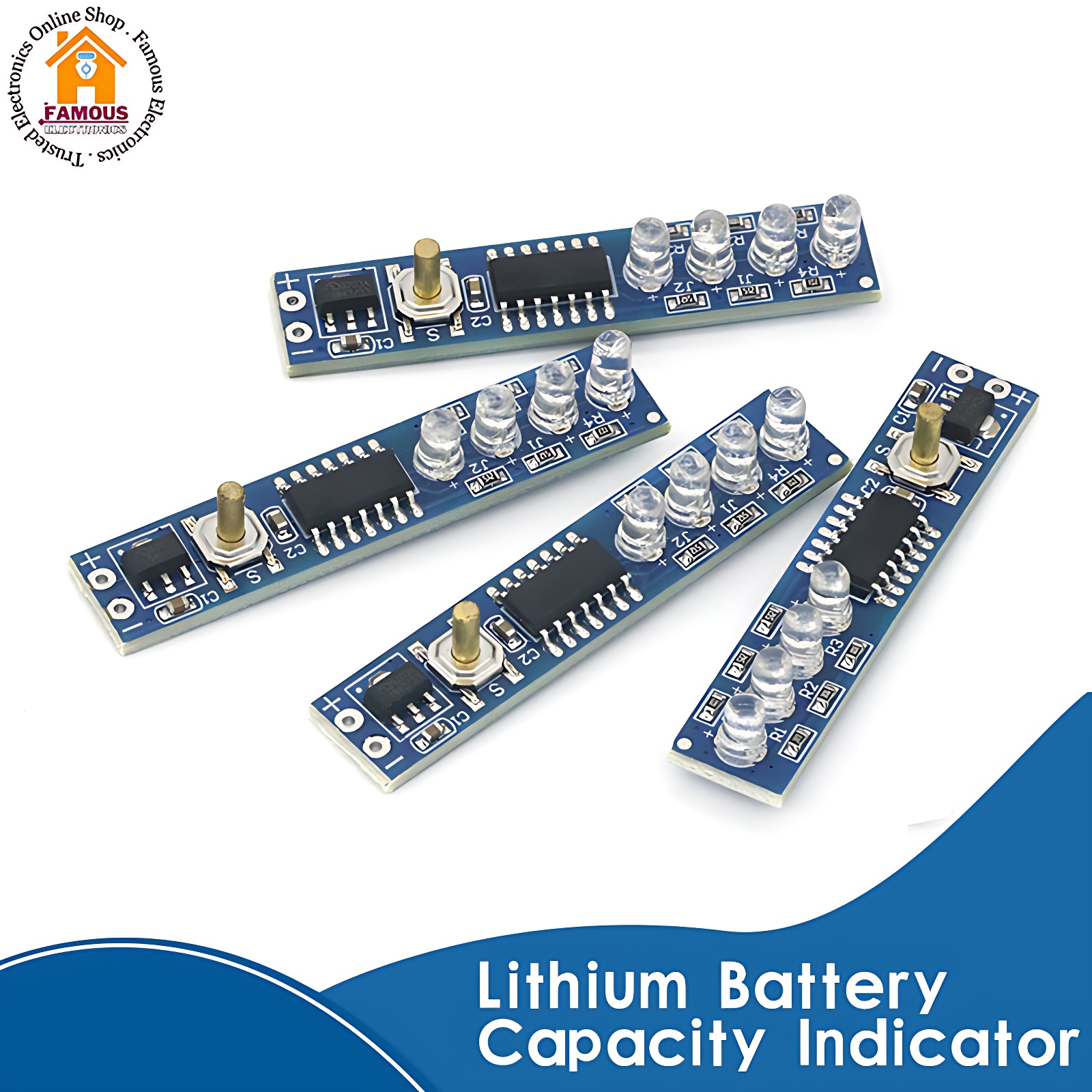

2S Lithium Battery Capacity Tester LED Display Board Power Level Indicator Module For 18650 Lithium Li-ion lipo Battery – Battery Capacity Tester

• • 1.Intelligent electricity quantity display board; slightly push trigger switch, it will auto power off after 3 seconds display
  • 2.Static power consumption 2.3MA,and it can be disregarded
  • 3.Plug-in indicator light color:25% red, other 3 pcs are green

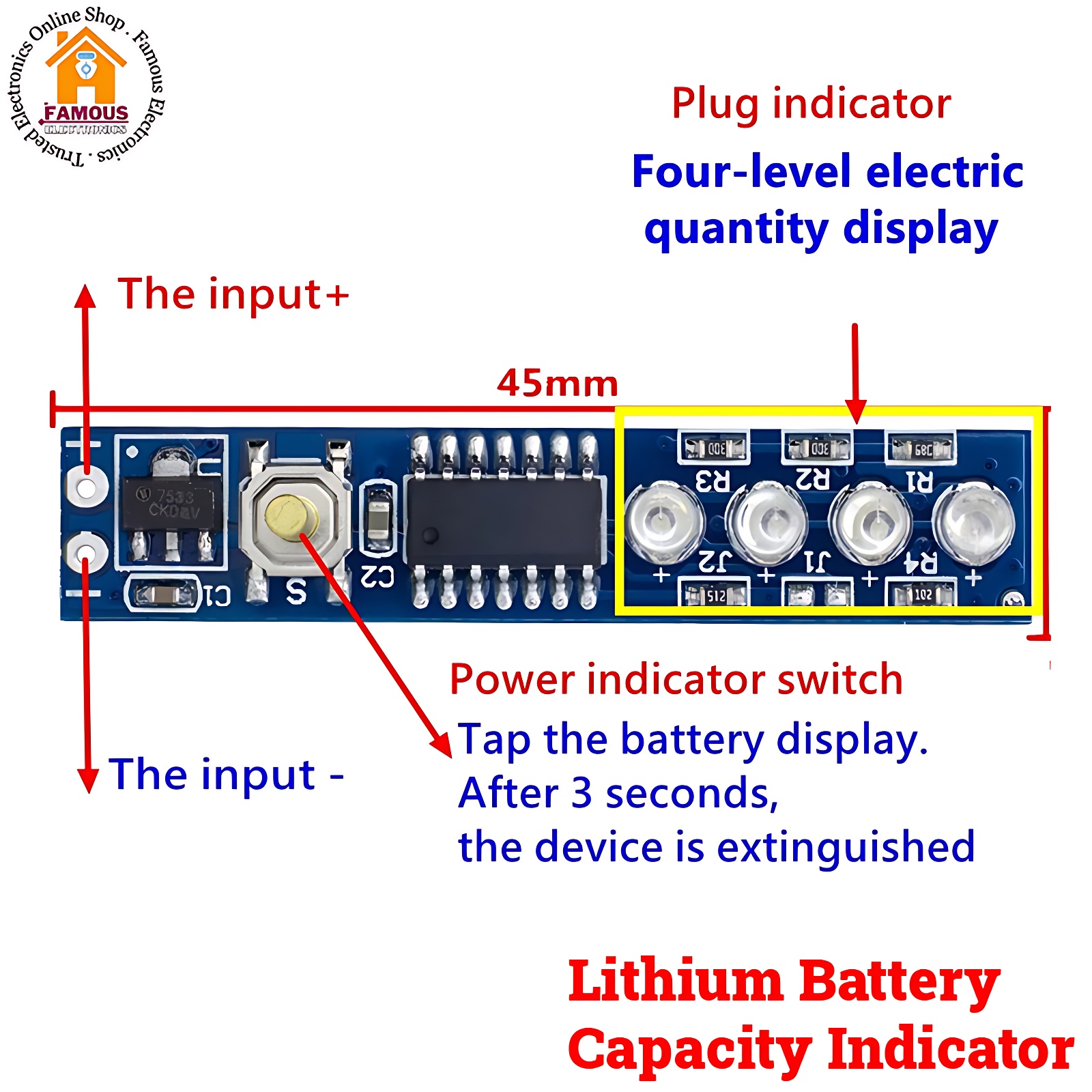

  • 4.Application Fields: battery electricity quantity detecting; only needs to connect seperately battery’s positive and negative with electricity quantity board’s positive and negative; slightly push trigger switch, then it can be able to detect current electricity quantity.4 LEDs will divide battery comprehensive capacity into 4 phases; slightly push the switch, electricity quantity will be shown
  • 2S: Display indication:25% first light is on(voltage:6.6V);50% second light is on (voltage:7V);75% third light is on (voltage:7.5V);100% fourth light is on (voltage:8V)

1.Intelligent electricity quantity display board; slightly push trigger switch, it will auto power off after 3 seconds display
2.Static power consumption 2.3MA,and it can be disregarded
3.Plug-in indicator light color:25% red, other 3 pcs are green
4.Application Fields: battery electricity quantity detecting; only needs to connect seperately battery’s positive and negative with electricity quantity board’s positive and negative; slightly push trigger switch, then it can be able to detect current electricity quantity.4 LEDs will divide battery comprehensive capacity into 4 phases; slightly push the switch, electricity quantity will be shown

2S:Display indication:25% first light is on(voltage:6.6V);50% second light is on (voltage:7V);75% third light is on (voltage:7.5V);100% fourth light is on (voltage:8V)
