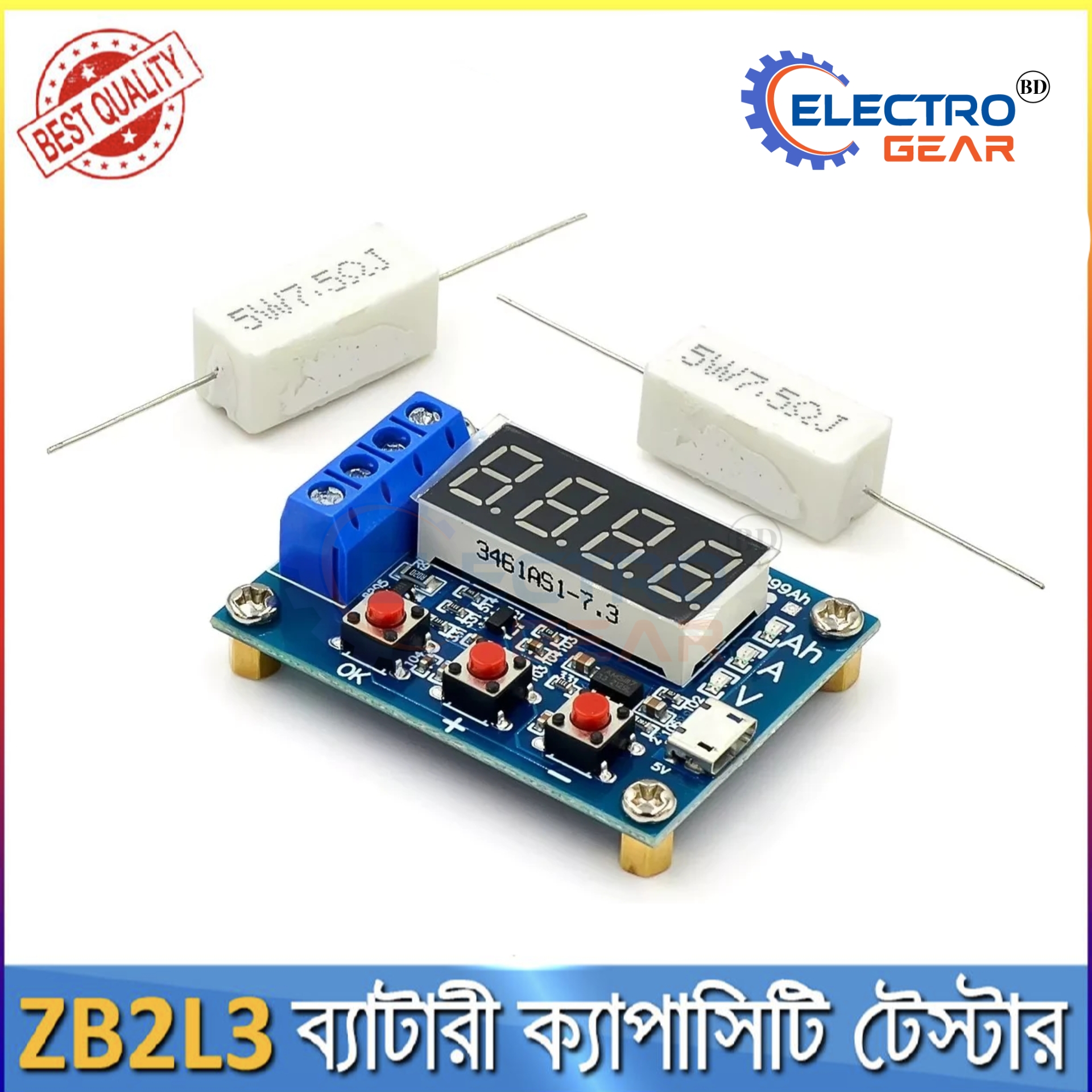

Battery Capacity Meter & Discharge Tester for 18650 Li-ion Lithium Battery

Battery capacity tester discharge type 1.2-12V external load capacity of the battery and other tests 18650

Tools, single-function, by controlling the load off and get real-time integrated discharge current capacity results

Power supply voltage: DC4.5-6V (micro USB interface)

Working current: <=70mA

Discharge voltage: 1.00V-15.00V, resolution 0.01V

Termination voltage range: 0.5-11.0V

Support current through: maximum 3.000A, resolution 0.001A

Maximum voltage measurement error: 1% + 0.02V

Maximum current measurement error: 1.2%+-0.002A

Maximum battery capacity range: 9999Ah (1Ah=1000mAh)

Board size: 50mmX37mm
